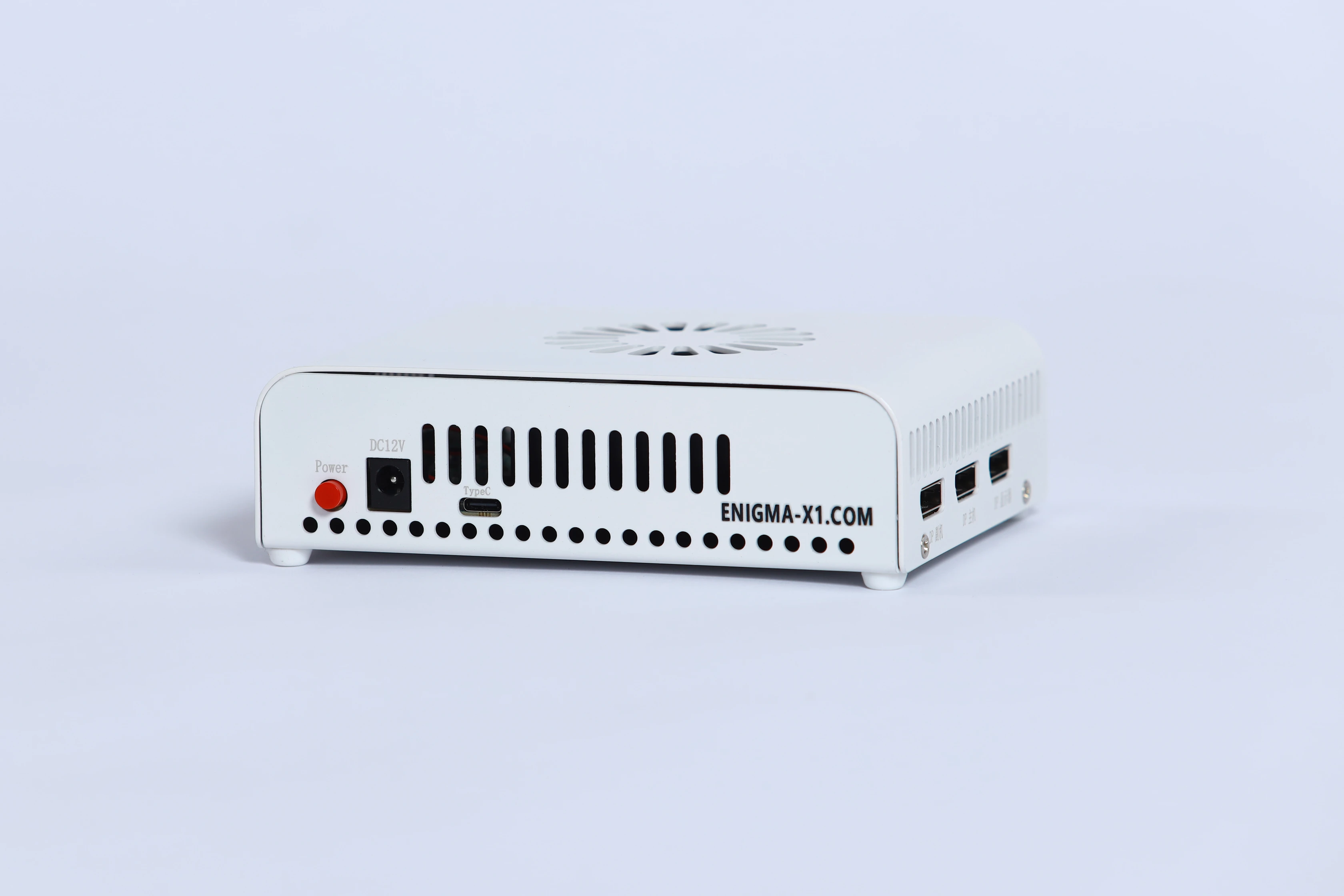

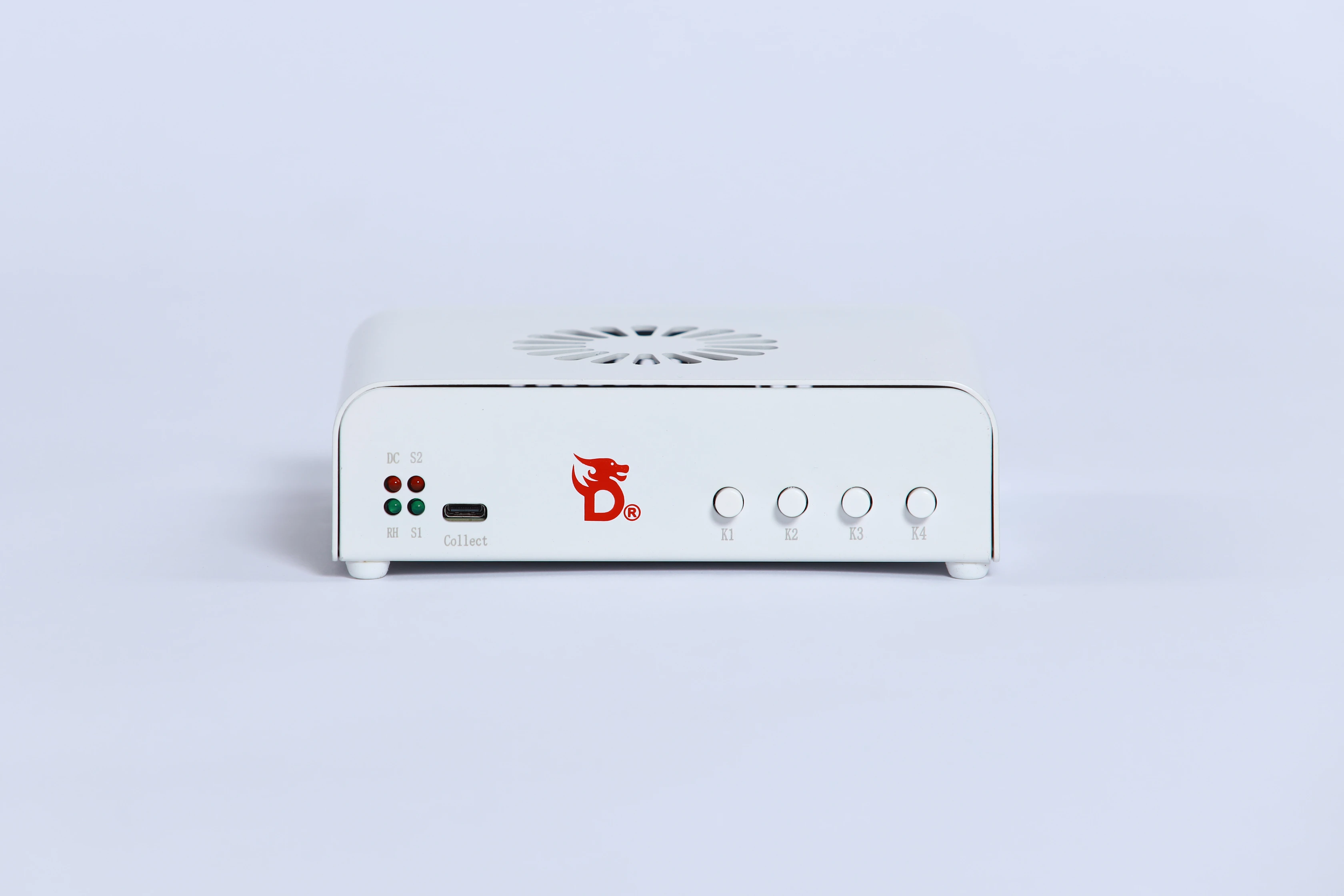

DICHEN DC505 4K Fuser DP/HDMI

Current Price: 499,99 Euro | Regular Price: 549,99 Euro

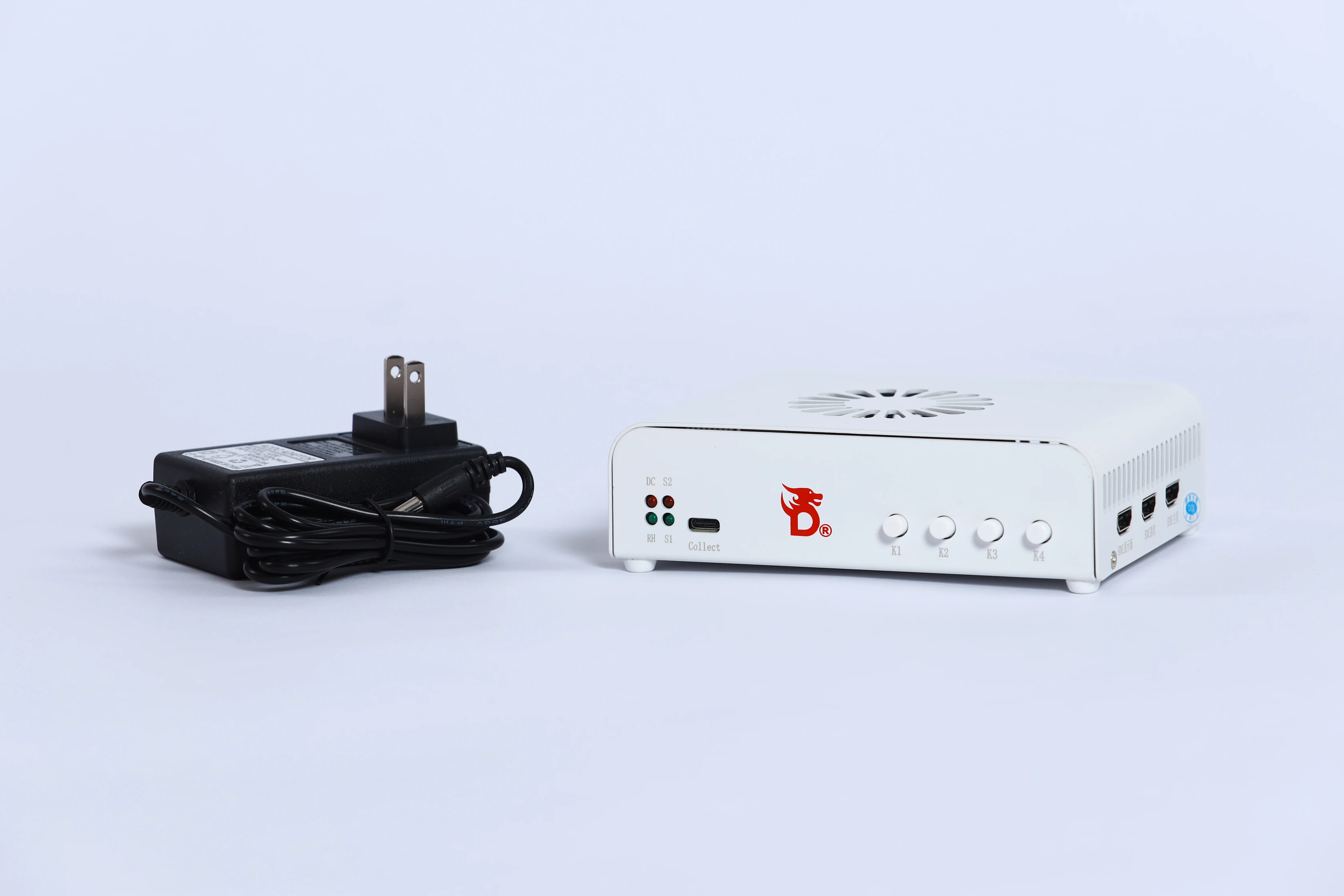

Package includes:
- Enigma v3 (4k DisplayPort) Fuser
- Power Cable

Power Adapter may require a power plug adapter suitable for your country’s standard.
No DisplayPort cable included.

Requirements
- Dedicated GPU on the 2nd PC
- 3x Displayport cables or 3x HDMI cables
Next-Generation 4K Fuser with Video Capture & EDID Injection
The DICHEN DC505 is the next-generation upgrade to the DC500, designed for high-refresh-rate display fusion, advanced signal compatibility, and professional video applications.
In addition to the proven 4K fusion capabilities of the DC500, the DC505 introduces two major new features:
* Integrated Video Capture Card
* Advanced EDID Injection & Editing
These enhancements make the DC505 an all-in-one solution for display fusion, live streaming, video capture, industrial imaging, and specialized display compatibility applications.
Video Input Specifications
DisplayPort Input
Supports ultra-high refresh rate signals up to:
* 1920×1080 @ 500Hz
* 2560×1440 @ 320Hz
* 3840×2160 @ 144Hz
Compatible with:
* Desktop PCs
* Laptops
* Graphics cards from major brands
* Most gaming and professional monitors
Notes:
* Most displays can achieve 1080p500, 1440p320, or 4K144.
* A small number of monitors may be limited to:
- 1080p480
- 1440p240
- 4K120
HDMI Input
Supports high-bandwidth HDMI signals up to:
* 1920×1080 @ 550Hz
* 2560×1440 @ 360Hz
* 3840×2160 @ 160Hz
Typical real-world performance:
* 1080p500
* 1440p320
* 4K144
Compatibility Highlights:
* No screen flickering with NVIDIA RTX 50 Series GPUs.
 * Fully compatible with modern laptops.
* Certain RTX 5070 Ti and higher GPUs, as well as some newer laptops, may require switching to 12G×4 mode.
New Feature: Integrated Video Capture
The DC505 includes a built-in video capture function, eliminating the need for a separate capture card in many applications.
Capture Performance
* Up to 1080p @ 60Hz capture
* Ultra-low latency operation
* Simultaneous video and audio capture
Flexible Capture Modes
Users can:
* Capture the source device directly
* Capture the fused display output
* Stream and record while using display fusion simultaneously
This makes the DC505 ideal for:
* Live streaming
* Content creation
* OBS workflows
* Gaming setups
* Professional demonstrations
New Feature: EDID Injection & Editing (Mode C)
The DC505 introduces advanced EDID management capabilities for professional users and specialized equipment environments.
EDID Injection
Users can inject virtually any compatible EDID profile to improve compatibility between source devices and displays.
EDID Editing
The DC505 can read, modify, and write EDID data, including:
* Display ID
* Serial Number
* Monitor Name
* Display Model Information
* Manufacturer Information
* Other EDID parameters
After modification, the customized EDID can be written back and applied to the system.
Typical Applications
* Display compatibility optimization
* Industrial equipment integration
* Medical imaging systems
* Signal testing and validation
* Custom monitor emulation
* Professional AV environments
EDID Operating Modes
Mode A – Adaptive Timing EDID (Automatically adjusts timing parameters for maximum compatibility)
Benefits:
* Automatic signal optimization
* Broad device compatibility
* Plug-and-play operation
Note: Some early production units may display Mode A and Mode B labels in reverse. This can be corrected through future firmware updates.
Mode B – Native Monitor EDID (Uses the monitor’s original EDID information)
Benefits:
* Preserves factory display parameters
* Maintains native monitor behavior
* Ideal for users requiring original display characteristics
Mode C – Custom EDID Injection. (Provides complete EDID customization)
Features:
* Custom EDID loading
* EDID editing and writing
* Display identity emulation
* Enhanced compatibility control
Supported Devices
The DC505 currently supports a wide range of devices, including:
* Desktop PCs
* Laptops
* NUCs
Additional device compatibility continues to be expanded through ongoing development and firmware updates.
